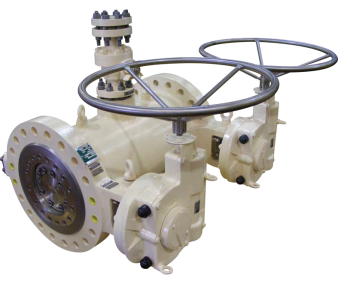

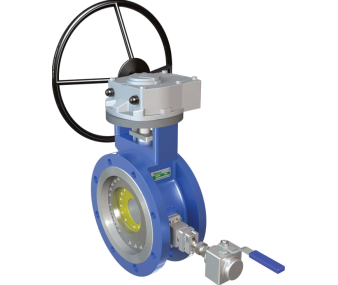

Double Isolation Triple Offset Butterfly Valves

AGS has developed a range of Double Isolation & Bleed Valves which provide the security of guaranteed isolation while delivering the benefit of the triple offset, metal seated butterfly valve.

Features

• Positive, verifiable, repeatable isolation
• Sizes: 2in to 60in
• Fully rated to Class 1500
• Field replaceable seat and seal
• Firesafe to API 607 / API 6FA/ISO 10497
• Lower cost of ownership than two single isolating valves
• Available in any material to suit client process conditions
• Fully rated for end of line duty
• Bleed connection to suit client requirements
• End connections to suit client requirements (RF, FF, RTJ, Norsok L- 005, Hub end, API)
• Non-standard face to face dimensions available
• One piece cast or forged body thus minimising potential leak paths
• Custom designs to suit client requirements
• Compact design that offers space and weight saving over conventional DBB valve configurations
• Two configurations available that can be adapted to suit client requirements

Click here to download the Technical Datasheets.
