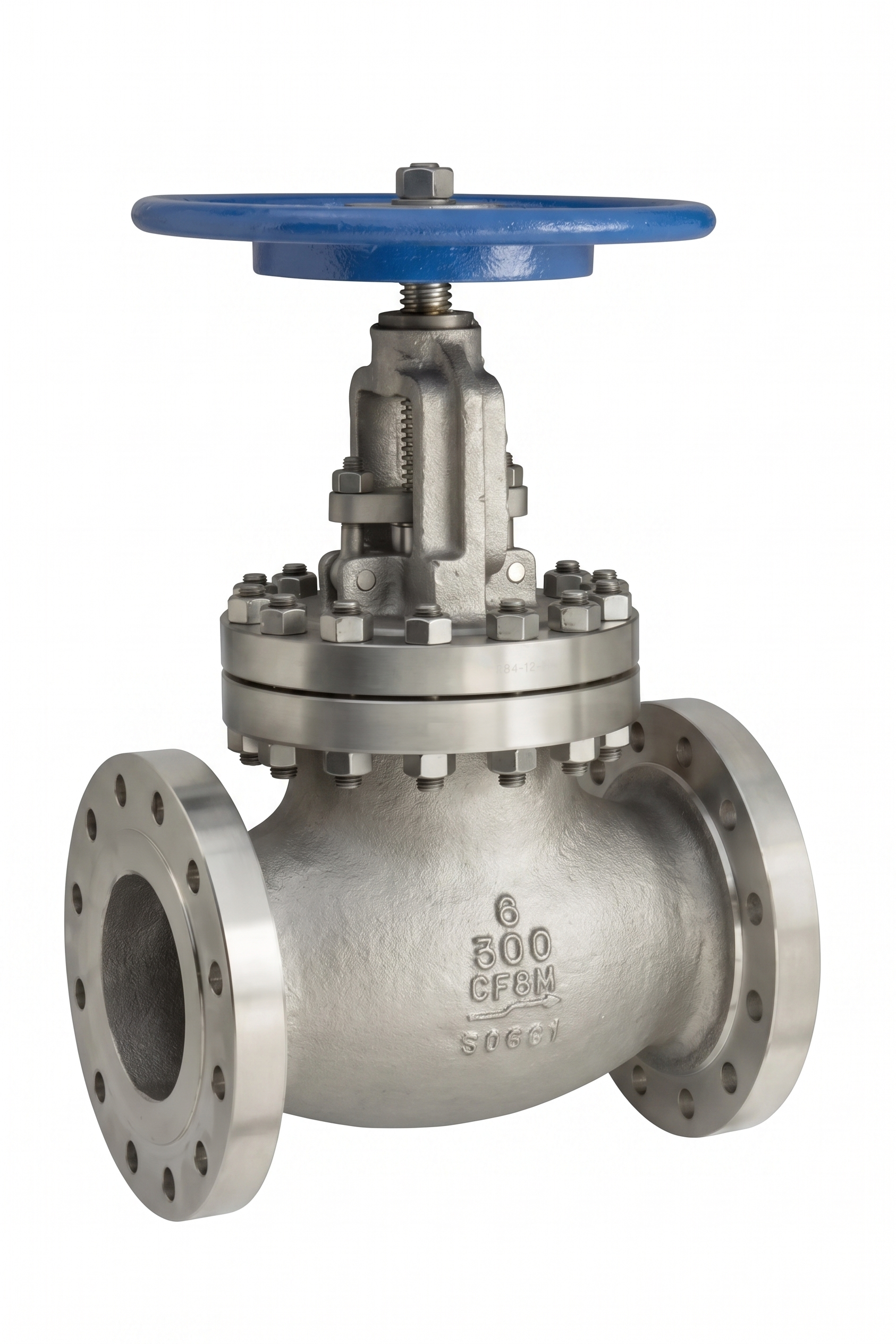

Globe Valves

Specification Item	Technical Details & Standard Features
Design Standards	BS 1873, API 623, ASME B16.34, API 598, API 624 / ISO 15848-1
Size & Pressure Range	NPS 2″ ~ 24″; Class 150LB to 2500LB
Bonnet Configurations	Bolted Bonnet (OS&Y) or Pressure Seal Bonnet for extreme thermal/high-pressure applications.
Standard Features	Highly engineered for precise throttling and frequent cycle operations. Integrally guided loose disc ensures perfect alignment with the seat without surface scoring. Seating faces are ground, lapped, and hardfaced with Stellite® as standard. Fugitive emissions compliance (<50 ppm) via polished stem finish and live loaded packing. Optional Bellows Seal assembly available for zero leakage hazardous fluid services.

Click here to download the Technical Datasheets.
