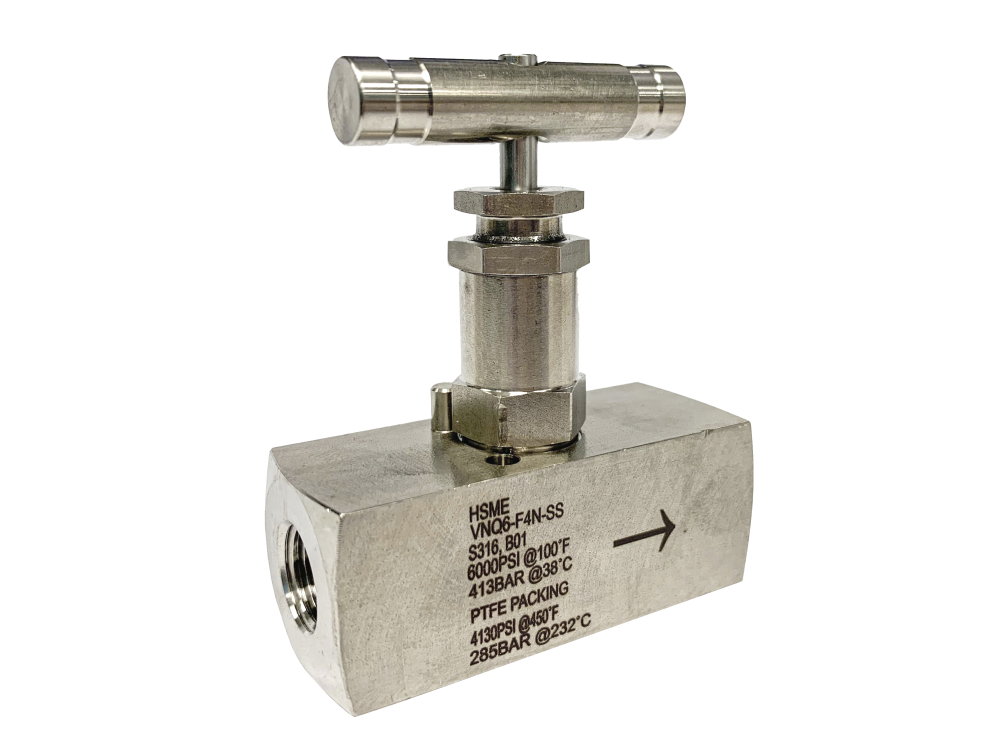

| Product Name | Needle Valve | ||
| Design Standard | ASME B16.34 | API 598 | |
| Body Material | SS316 | SS316L | Brass |
| Needle Material | SS316 | Monel | |
| Seat Material | Metal-to-Metal | PTFE | |
| Stem Material | SS316 | ||
| End Connection | Threaded | Tube Fittings | |
| Size Range | 1/8” to 2” (DN6 to DN50) | ||
| Pressure Rating | 3000 PSI to 10,000 PSI | ||
| Temperature Range | – 54°C to 232°C | ||
| Flow Coefficient | (Cv) 0.5 (for 1/4″ valve) | ||
| Leakage Class | ANSI Class VI | ||
| Flow Direction | Uni-directional | ||
| Compact Design | Yes | ||
| Panel Mounting Option | Yes | ||
| Blowout-Proof Stem | Yes | ||
| Non-Rotating Stem | Yes | ||
| Lockable Handle | Yes | ||
| Adjustable Packing | Yes | ||
| Anti-Static Design | Yes | ||
| Bonnet Style | Integral Bonnet | ||
| Certifications | CE | API 598 | ISO 9001 |
