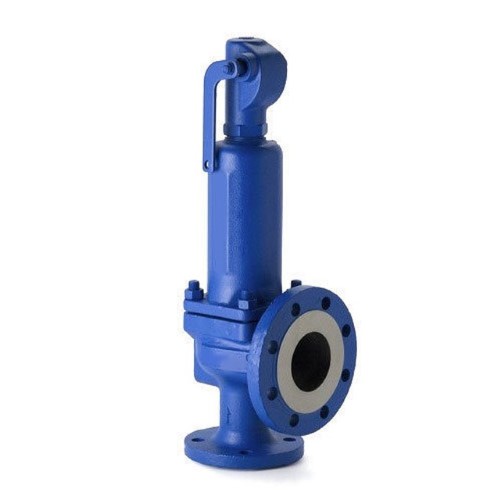

| Product Name | Safety Valve | ||
| Model Number | |||
| Manufacturer | |||
| Design Standard | ASME Section I | ASME Section VIII | API 526 |
| Operation | (spring-loaded) | ||
| Body Material SS316 | Carbon Steel | ||
| Trim Material SS316 | Inconel | ||
| Seat Material | Metal-to-Metal | ||
| End Connections | Flanged | Threaded | |
| Size Range | 1/2” to 12” (DN15 to DN300) | ||
| Pressure Rating | 150 PSI to 6000 PSI | ||
| Set Pressure Range | 15 PSI to 6000 PSI | ||
| Temperature Range | – 196°C to 450°C | ||
| Flow Capacity | As per ASME code | ||
| Overpressure | 10% | ||
| Blowdown | 7% | ||
| Spring-Loaded | Yes | ||
| Pop Action | Yes | ||
| Balanced Bellows | Yes | ||
| Full Lift | Yes | ||
| Blowdown Ring | Yes | ||
| Closed Bonnet | Yes | ||
| Test Gag | Yes | ||
| Lockable Cap | Yes | ||
| Certifications | ASME Code Stamp | API 526 |
Click here to download the Technical Datasheets.
