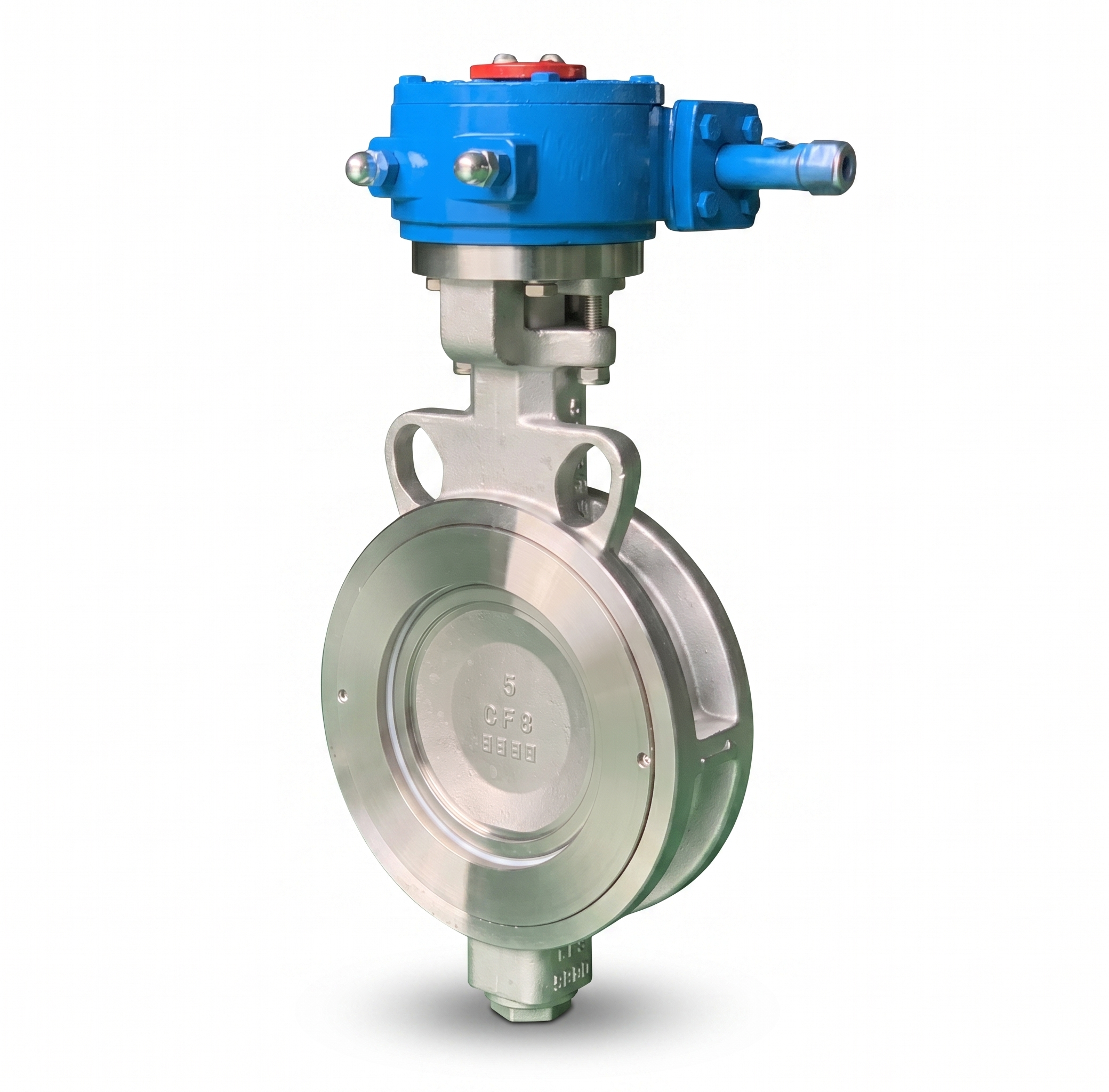

Tripple Offset Butterfly Valve (High performance)

Design	Tripple Offset
Construction	Wafer Semi Lug /Full Lug	U Flange / Double Flange
Design Std	API 609 Cat. B	EN 593
Seat Design	Soft Seat	Metal Seat
Temperature Range	– 20 to 4’C
Size	2” to 48”
Material of Construction	Cast Grade(WCB/CF8M/CF3M/4A/5A/6A)
Seat Material	PTFE / Viton / RPTFE	Metal to Metal / Graphite
Fire Safe Test	API 607
Leakage Class	V – Metal Seat SIL
Top Mounting Flange	ISO5211
Operator	Lever / Gear	Pneumatic Actuator / Electric Actuator
